Aluminum Sliding Windows

The Artisan Sliding window is easy to operate, and ideal for wide spaces near high-traffic areas like walkways. They have two sashes of equal size. These windows are custom-made to fit almost any opening, regardless of shape or size. Made with thermally broken, all-aluminum frames, the Artisan Sliding comes standard with Low-E ultimate performance dual-pane glass. These units significantly reduce heat transfer, and protect against harmful infrared and ultraviolet light that can damage or discolor your interior. Offering gorgeous outdoor views and exceptional airflow while saving space, the Artisan Sliding window is suitable for both residential and commercial properties.

Introducing the Gen 3 Sliding Door

Built Better. Performs Better.

Featuring an enhanced lock stile engineered to help eliminate bowing caused by direct heat and sunlight, plus a completely redesigned jamb that improves everyday operation for homeowners while providing greater flexibility and ease during installation.

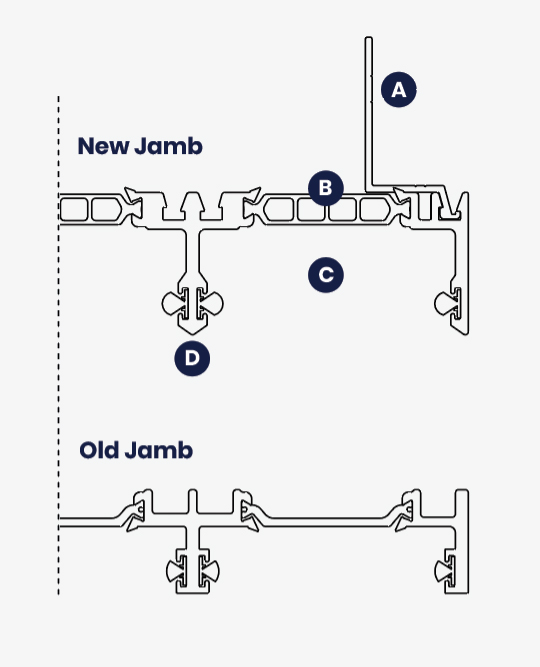

Completely Redesigned Jamb

Improves everyday operation for homeowners while providing greater flexibility and ease during installation.

Optional nail fin available

Comes with squared or butted corners with internal gussets and stainless-steel screws.

Double-Walled Thermal Strut

Adds strength and stability while helping improve thermal performance.

Deeper Jamb

Provides greater stability and installation flexibility for a more secure, forgiving fit.

Beveled Leading Edge

Provides greater stability and installation flexibility for a more secure, forgiving fit.

Technical Specifications

Product Design Options

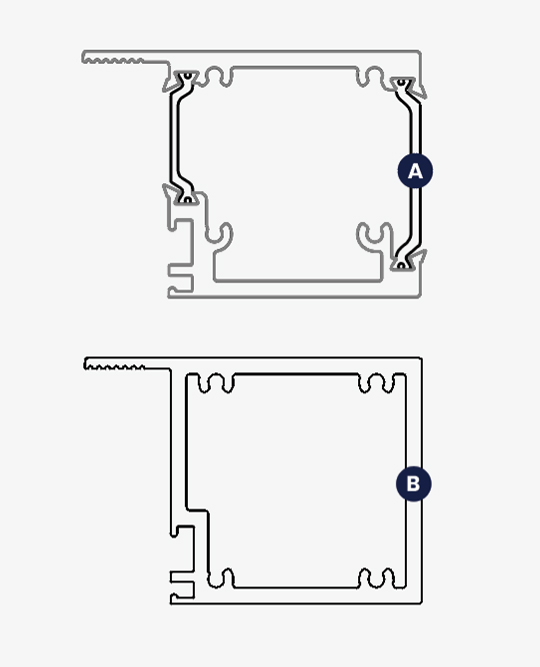

Updated Lock Stile

Designed to deliver smooth, consistent operation throughout the day, even in large applications and direct sunlight.

Standard Lock Stile

Proven design that continues to perform well in standard applications.

New Lock Stile

Enhanced design helps minimize heat-related bowing in larger doors and applications with significant direct sun exposure.

features

Locking System

Exterior key locking system, and option of keyed or non-keyed.

Design Flexibility

Orientation can be set as XO or OX, depending on customer preference. Often combined with picture window transoms or sidelights. Can be mulled up to 3 units wide. Maximum mulled unit width is 20ft, and maximum mulled unit height is 8ft. Total window set cannot exceed 120 sq ft.

Energy Efficiency

Built with thermally broken, all-aluminum frames and Low-E glass, our windows reduce energy consumption, and are valuable in climates with extreme temperatures.

Mounting

Comes with a stainless steel roller track

Weather Resistance

Aluminum windows are resistant to rusting, warping, cracking, and swelling, making them extremely stable in various climates. Double vinyl bulb weather stripping assures tight seal against air and water. Head flashing comes standard, but can be removed based on customer preference or overhang.

Versatile Solutions

Sash limiters available: WOCD (Window Operating Control Device) sash limiter. Option of including a sash stop, which is permanently affixed and prevents the unit from being fully opened. Units have the option of screens.

Technical Specifications

Product Design Options

Finishes

Our aluminum frames are available in Class I Black/Dark Bronze Anodized, Class II Clear Anodized, AAMA 2604 Black Paint, Dark Bronze Paint, and White Paint. Custom color options also available, including limitless colors as well as upgradable AAMA 2605 options. Learn more

Dark Bronze Anodized

clear anodized

black paint

Dark Bronze Paint

White paint

Glass

Endless glass options are available, with the most popular being Low-E ultimate performance dual-pane glass. Choose between Low-E coated glass or insulated clear glass, as well as tempered or annealed. Additionally, there’s the option for lamination with various thicknesses, and a selection of tints such as bronze, greylite, solar grey, or your own customization. Lastly, choose from popular patterns like frosted, obscure, rain, reeded, glue chip, or create your own design. Learn more

Clear

Frosted

Obscure

Rain

Reeded

Glue Chip

Hardware

Finished with high-quality Truth® hardware. All operable units come with a crank and lock mechanism. Choose between black, bronze, or satin nickel. Custom hardware options also available. Learn more.

Black

bronze

Satin Nickel

Grids

Grids are available in SDL (Simulated Divided Lite) bars, GBGs (Grilles between the glass), or both. Choose from one of our popular grid patterns, or customize your own. Learn more
